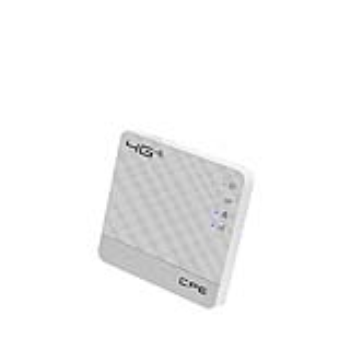

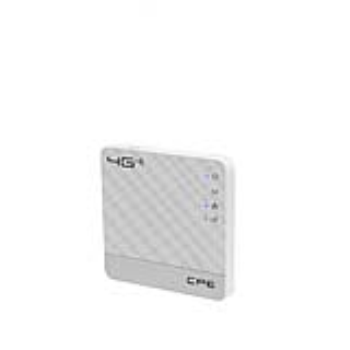

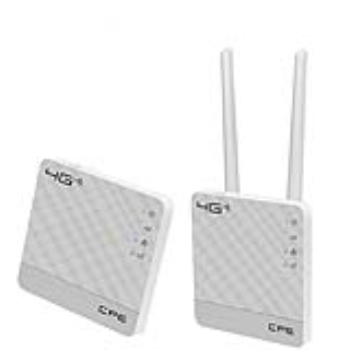

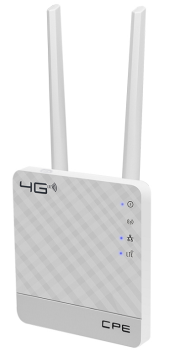

Wifi Router

HW_VER

V1.0

MTK Chipset

MT6735WM

RAM/ROM

4GByte EMMC+512MByte DDR2

Frequency Band

FDD operating band                                                                                                                                                                          B1,B3,B5,B7,B8,B20，B28

TDD operating band                                 B38,B39,B40,B41

WCDMA:B1,B5 ,B8

 EVDO BC0

GSM:900/1800MhZ(optional)

                            Diversity Band

FDD operating band                                                                                                                                                                          B1,B3,B5,B7,B8,B20，B28

TDD operating band                                 B38,B39,B40,B41

WCDMA:B1,B5 ,B8

 EVDO BC0

B7 ，B20，B28 optional

3GPP

3GPP R9                                                        Cat.4

3GPP R9                                                        Cat.4

3GPP R7&R8                                                                     HSDPA Cat.24(64QAM)                                             HSUPA Cat.7(16QAM)

3GPP2

NA

Transfer rate

up to 150Mbps DL                                                 up to   50Mbps UL

up to 150Mbps DL                                                 up to   50Mbps UL

HSDPA up to 42.2Mbps DL                                                          HSUPA up to 11.5Mbps UL

3.1Mbps DL

NA

LAN Speed

10/100M

Wi-Fi Chipset

MT6625L

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi Transfer rate

up to 150Mbps

Encryption

                                                                                                                                                                                                                              Wi-Fi Protected Access™ (WPA/WPA2)2

WIFI type

 2.4G

Antenna

2.4G wifi  antenna *2（External*1，internal*1）, LTE antenna *2   （Main LTE Eexternal *1， diversity antenna internal *1）

Virtual card

4G+2G （optional）

Soft SIM

esim or  softsim  （optional）

Customization

Smart system, strong customization ability

LCD

Color display  （optional）

LED

LED

On/off button

1 power

SIM

2FF SIM

USB

USB TYPE A (5V 1A IN)

DC

12V  1A IN

RJ45

1* WAN/LAN

Wi-Fi

Wi-Fi AP， Max 10 users (up to 20 users if add RAM)

                   SSID

4GCPE-XXXX（last 4 digits of the MAC address）

WIF password by default

1234567890

Working temperature

0° - 55°C

Working height

Current tested max height 3000m (10,000 inches)

Operation system

PC Users:                                   A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8

MAC Users:                               A Mac with  OS X v10.5.7,OS X Lion v10.7.3 or later

IPAD Uers:                                                        An iPhone, iPad, or iPod touch with iOS 5 or later

Android Uers:                          An mobile Phone or Tablet PC with Android 2.3 or later

Operation Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari and above

System

Android 6.0
