Module

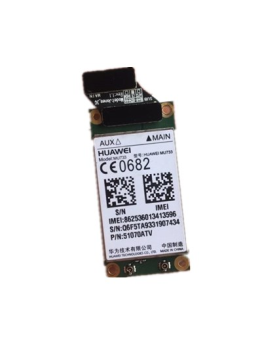

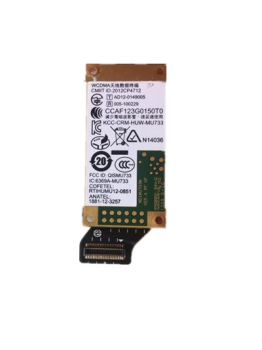

Huawei MU733 is one of the world's slimmest and most compact 3G/HSPA+ modules. The HUAWEI MU733 has a 50-pin B2B (Board to Board) connector and features an USB interface including hardware reset. HUAWEI MU733 is a HSPA+ wireless data module which supports penta-band UMTS/HSPA+ and quad-band GSM/GPRS/EDGE network.

HUAWEI MU733 Technical Specifications:

* 3G Penta-band HSPA+/HSPA/WCDMA 2100/1900/AWS/900/850MHz

* 2G Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* Donload speed up to 21Mbps/upload speed to 5.76Mbps

 Data Transfer Rate

 * WCDMA PS: UL (384 kbps)/DL (384 kbps)

* HSPA: UL (5.76 Mbps)/DL (7.2 Mbps)

* HSPA+: UL (5.76 Mbps)/DL (21 Mbps)

* GPRS/EDGE: Multi-slot Class 33, Class B

Interface

* Antenna interfaces x 2

* B2B 50pin

* Power supply

* USB 2.0 high speed

* UICC interface

Special Fetures:

* Supporting MO and MT

* Supporting formats of PDU

* Point-to-point and cell broadcast

* Power Supply: Supply voltage range: 3.3 V to 4.2V (3.7 V recommended )

* Mini size (20 * 40 * 2.0mm)

* 5-band global roaming

* Low power consumption

* Support Windows XP/7/8, Android 4.0

Approvals

* CE

* FCC

* GCF

* CCC

* NCC

* PTCRB

* WEEE

* RoHS/Halogen free

* REACH

* Global operator TA
